1. After connecting multiple plates to solder, breaking will often damage the line or break the electronic parts, the machine to walk the knife type partition, can completely reduce stress, prevent solder joints cracking and parts breaking, improve production efficiency and quality.

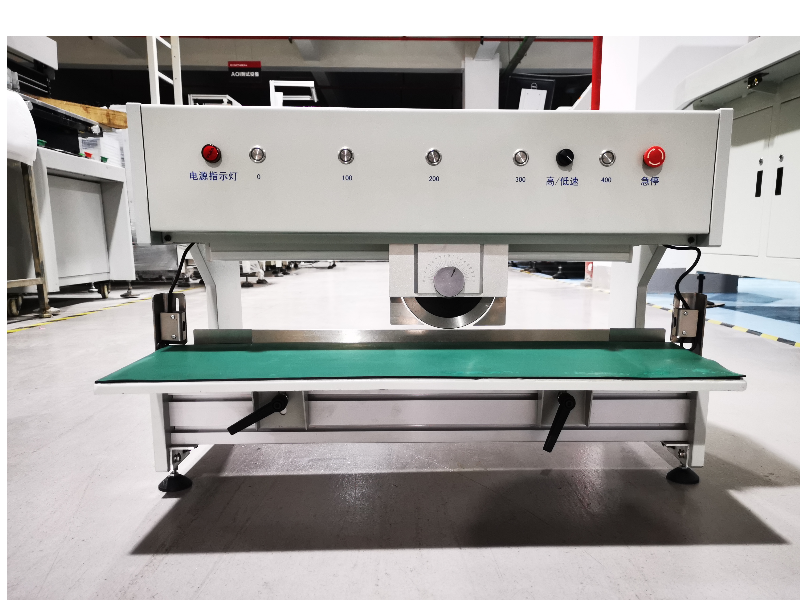

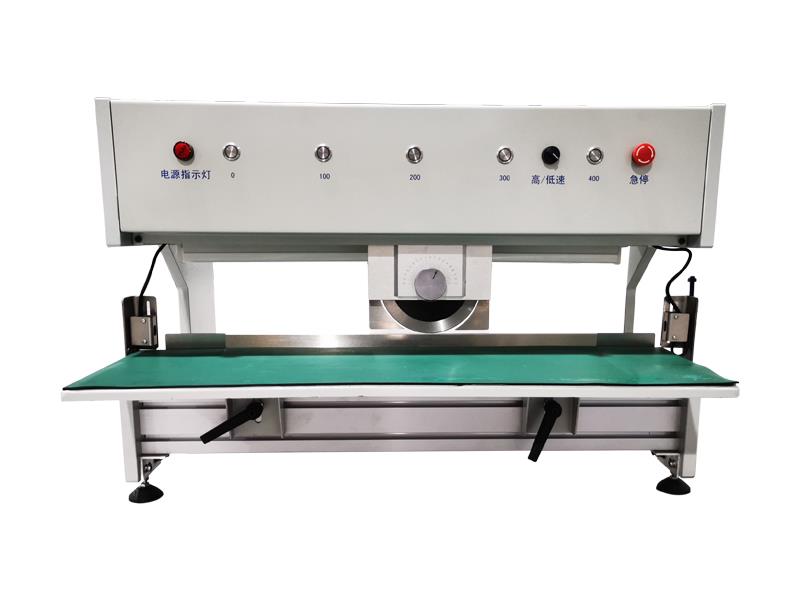

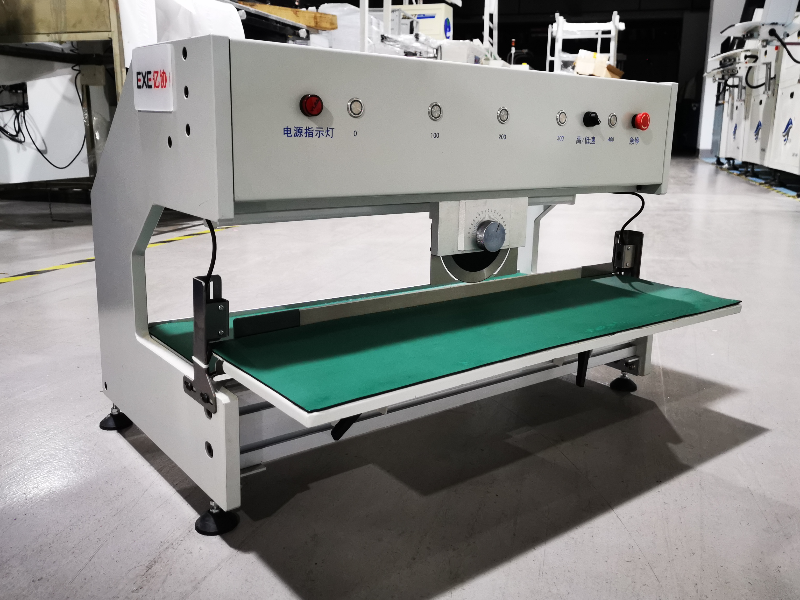

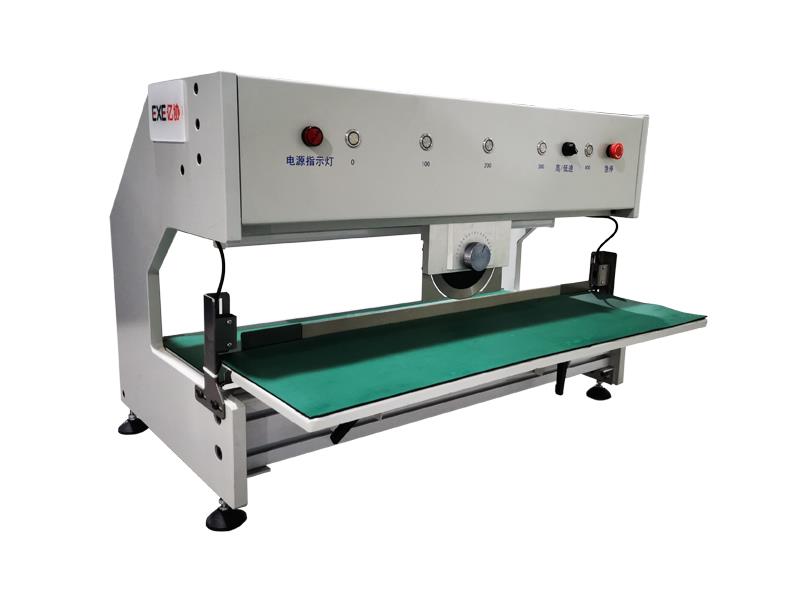

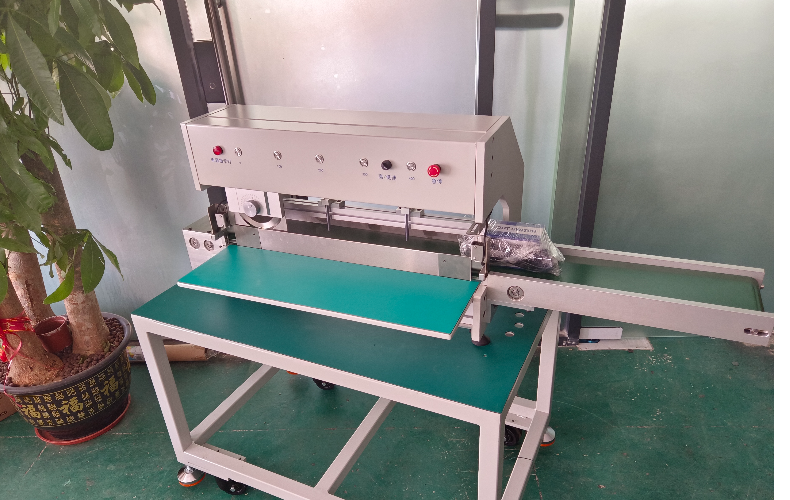

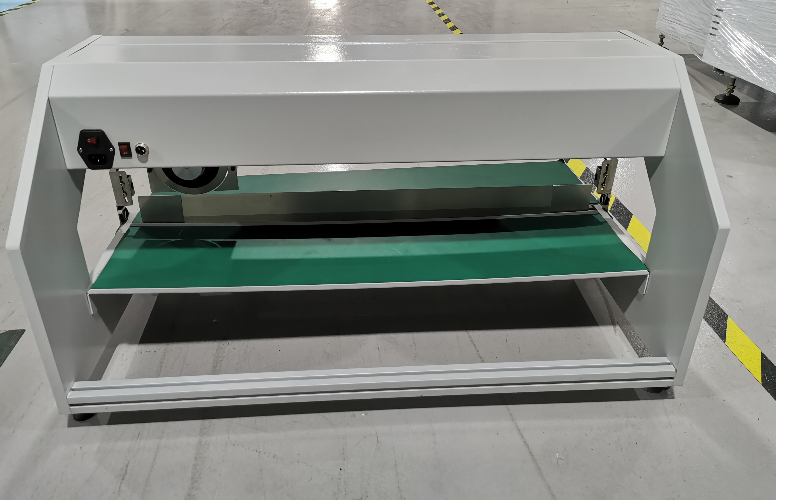

2. Using the upper round knife and the lower flat knife, the board is on the lower flat knife, the switch is stepped on, and the upper round knife is moved horizontally to the set fixed point, that is, the PCB board is cut and divided, the cutting is not removed, and the incision is smooth and without burr edge.

3. Fully developed, using microcomputer program control, fixed point accuracy, strong stability. Cut off a single plate with a length of 0 to 360MM.

4. The cutting speed can be adjusted high and low, the speed is 500mm/S and 300mm/S, the knife speed is fast, it can improve the product quality, no burrs, no burrs.

5. Tool wheel travel :0-360mm(tool length can be customized). The upper and lower height of the cutter wheel is fine-tuned :0-2mm to apply to various PCB board thicknesses and solve the problem of PCB V-CUT groove depth. The height of the operating table can be adjusted :0-50mm.

6. The cutting stroke can be set with the length of the plate to advance the stop point, the stop point is manually set.

7. Tailgate depth range: unlimited. The larger plate cutting width: unlimited, the larger plate cutting length :360mm, the larger plate thickness :0.2-5mm, the larger thickness between the V slot :0.25-2.0mm.

8. The upper and lower knives are imported high-speed steel material, durable and can be ground again.

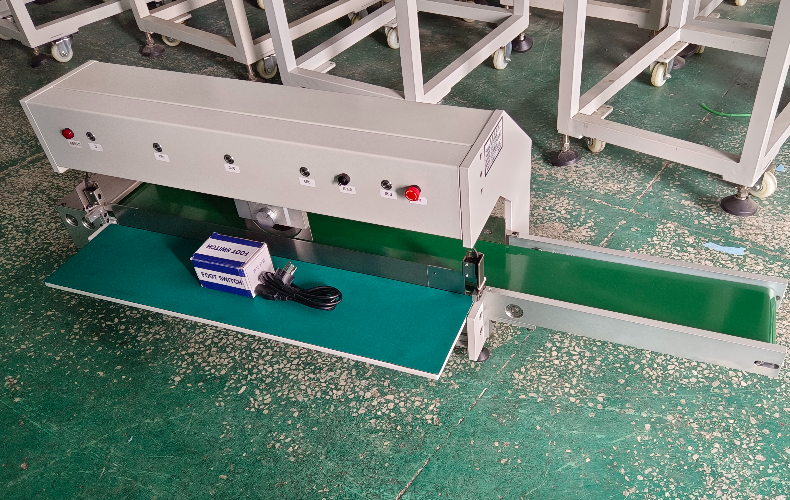

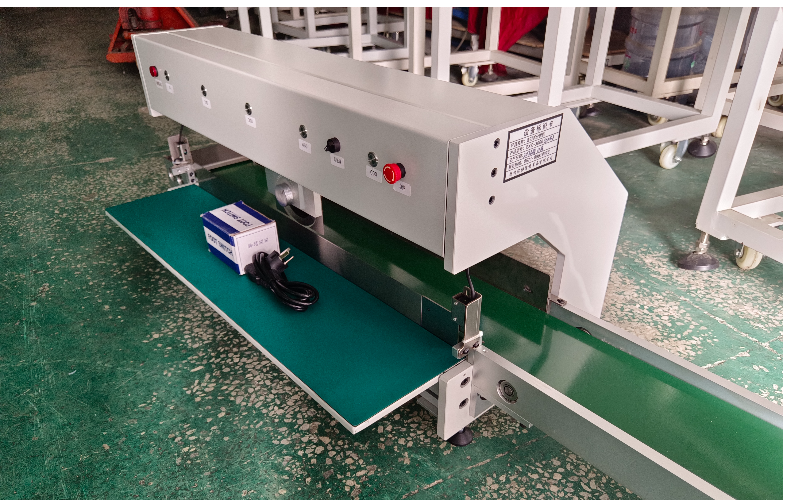

9. It can be equipped with a conveyor belt to facilitate the automatic delivery of the cut PCB board.

10. Lifting platform The lifting of the platform, the platform is raised, can affect the quality of the product, it is not easy to cut the product, and can also reduce the stress.

11. Limit device, can be applied to different sizes of products, thereby improving work efficiency.
