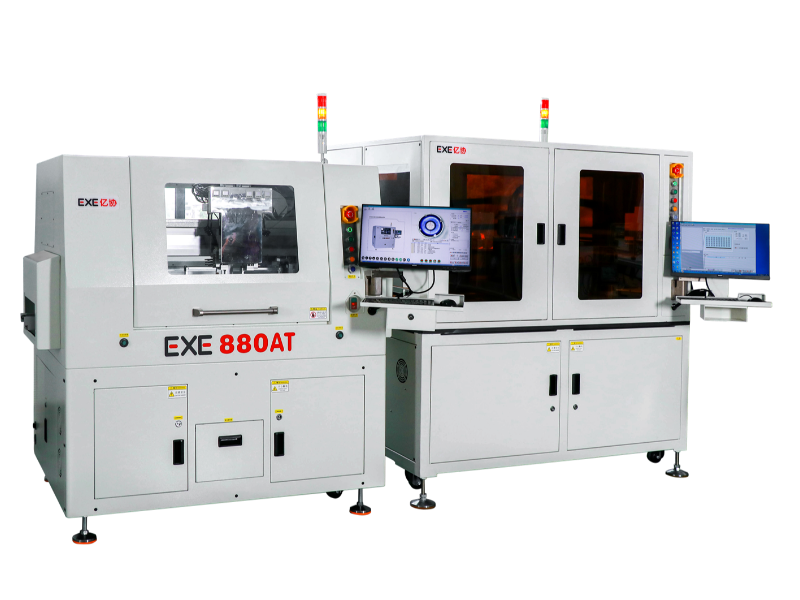

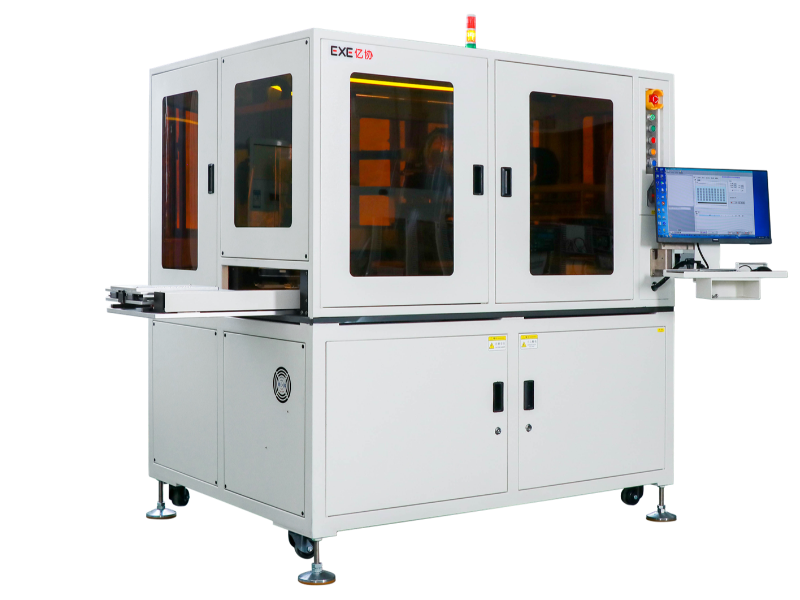

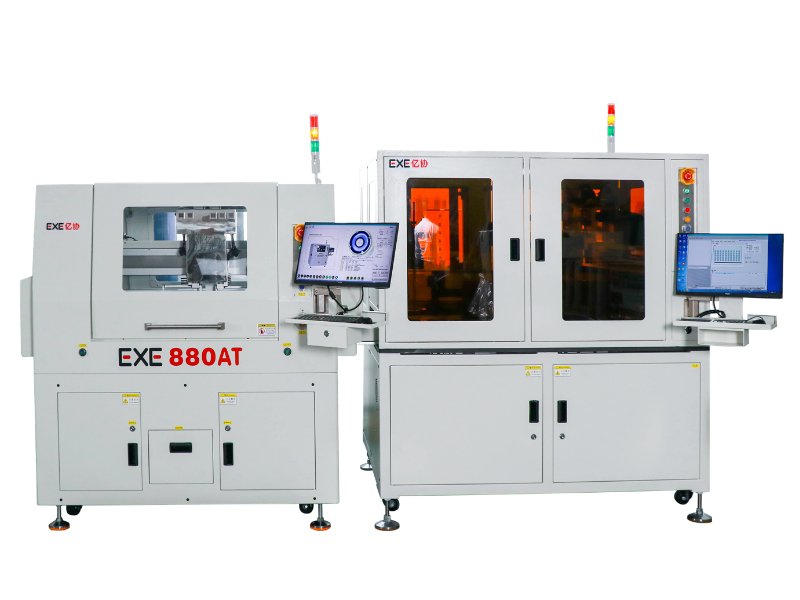

On line type disk shifter EXE530

Specification parameter

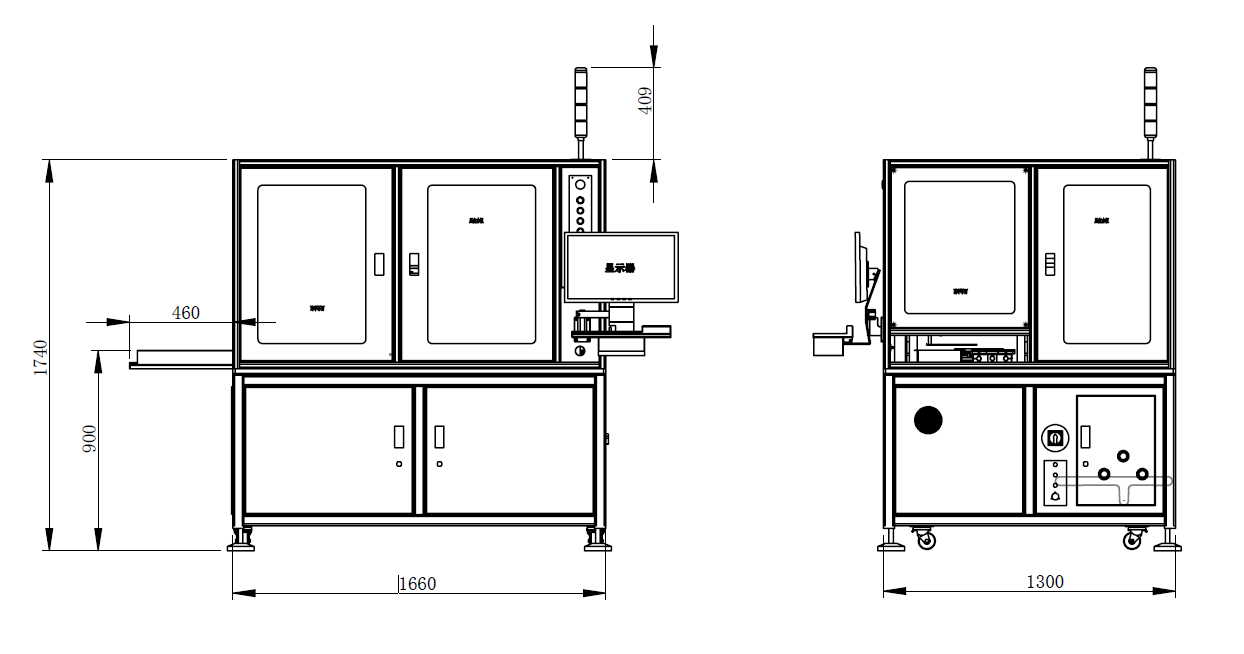

1. The stroke of X axis is 1100MM, and the stroke of Y axis is 600MM.

2. The range of work travel is marked by the red circle

3. Automatic feeding: the signal of the front online splitter will automatically send the products to be placed.

4. Automatic code scanning: CCD detects product size and has the function of code scanning.

5. Automatic plate setting: CCD guide nozzle automatically absorb OK product setting.

6. Automatically distinguish NG code: NG products are automatically put into the NG disk, NG code and fork plate into the bad box.

7. Automatic Tray stacking: automatic supply of empty Tray trays and stacked OK finished tray trays.

8. The AGV automatically feeds the empty Tray Tray and collects the full tray tray.

9. Adopt multi-axis bus control.

10. Gantry structure/manipulator structure (optional)

Product details page Product characteristics Quality assurance and after-sales service

Customer site

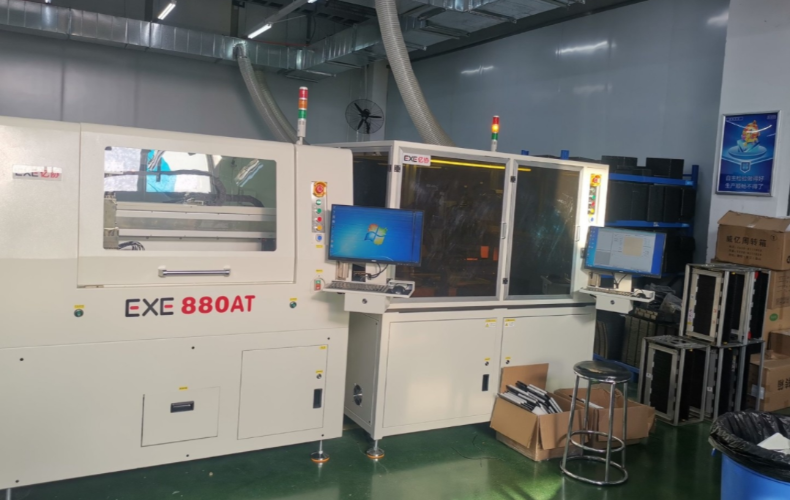

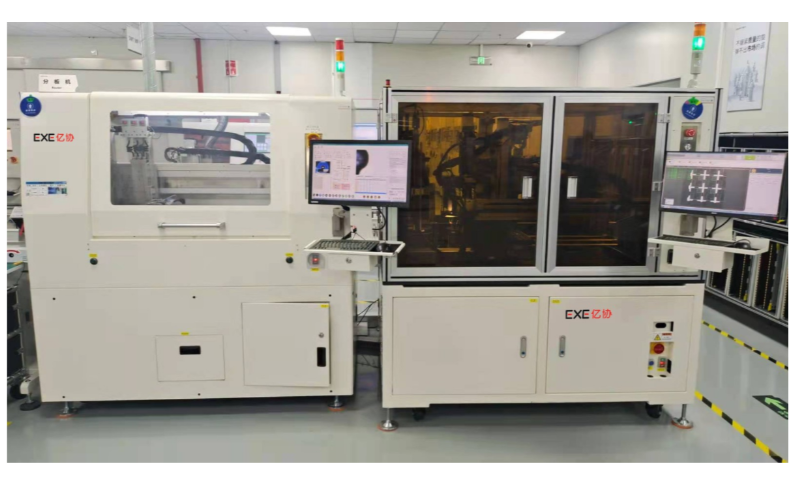

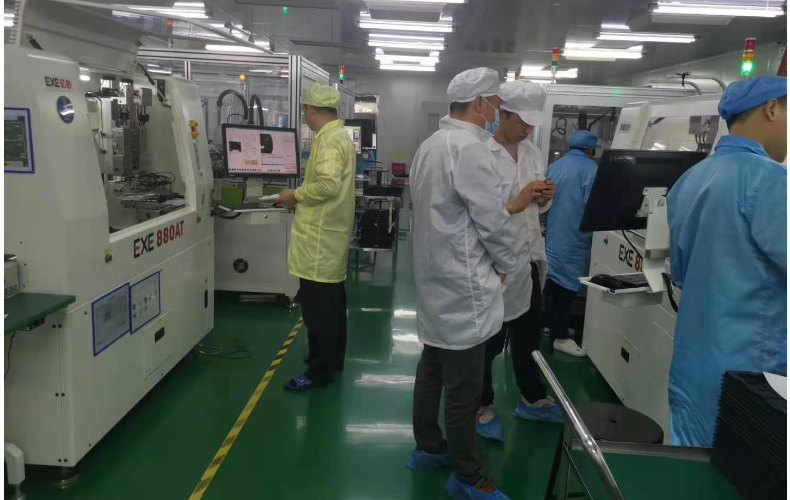

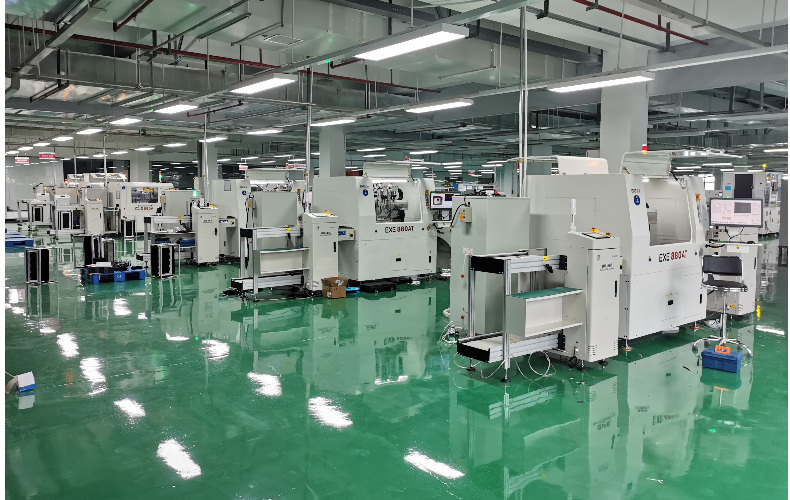

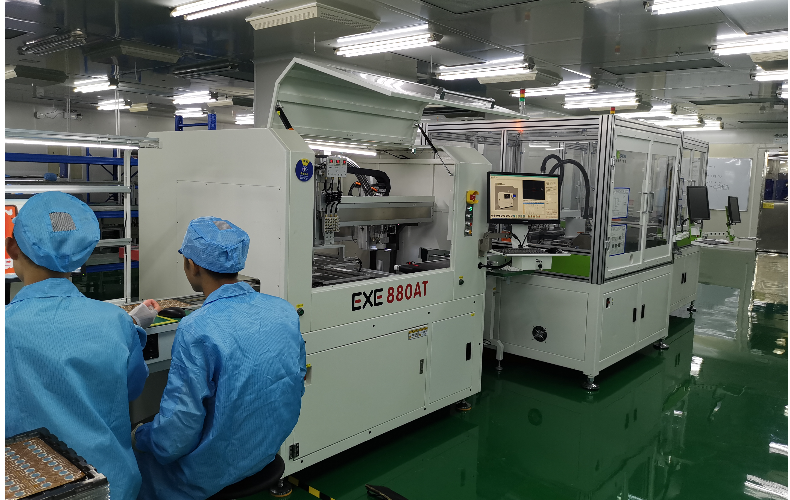

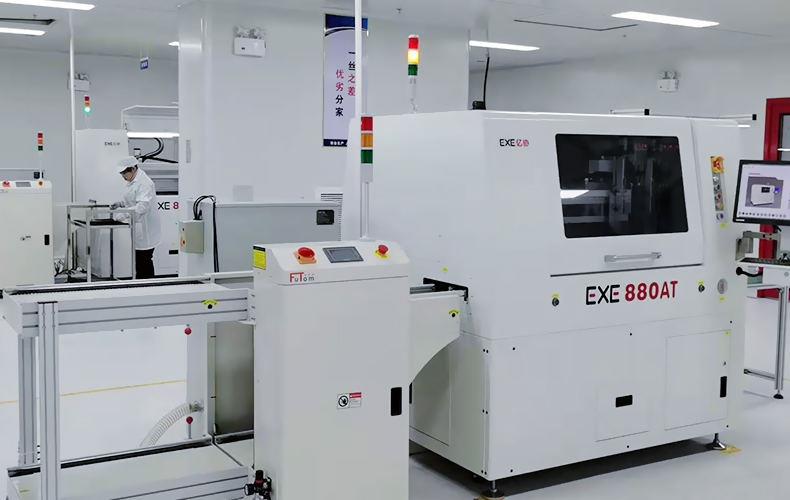

Online plate splitting machine + online plate placing machine

Function introduction

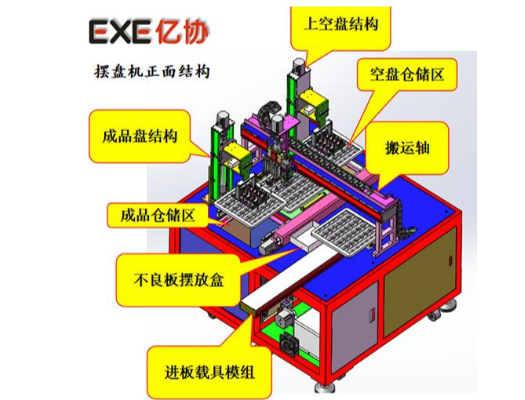

Front structure of the pendulum machine

The loading vehicle of the on-line plate splitter and the swinging machine enters the finished plate from the front end of the splitter into the swinging machine, and waits for the CCD of the handling shaft to detect the defective products.

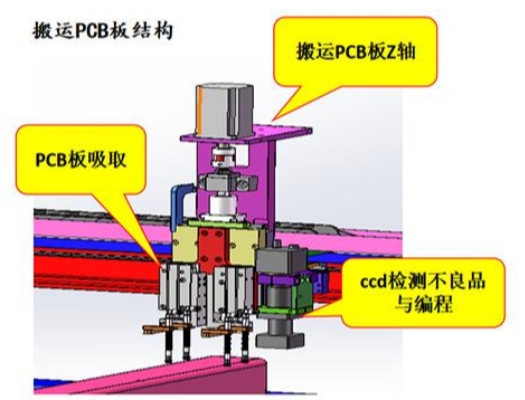

PCB handling structure

Keynes CCD lens measurement and identification PCB board, Z-axis grab PCB board.
The servo motor draws the cut PCB board from the discharge tray, and then puts it into the tray. According to the type of PCB board, it automatically determines whether the

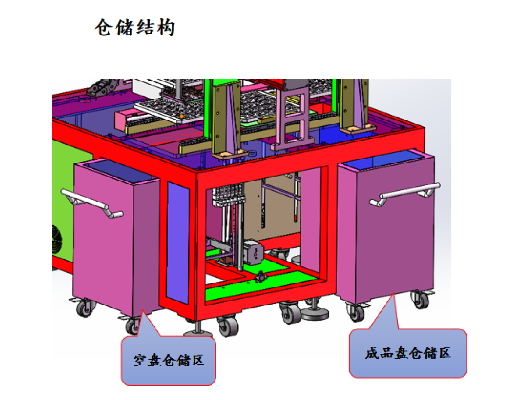

Storage structure

Empty disk storage tray motor drives the automatic rise to the height of the automatic empty disk, waiting for Z2 axis to be absorbed into the swing plate, waiting for PCB board to be installed.
When the finished product tray storage reaches the set quan

Configuration introduction

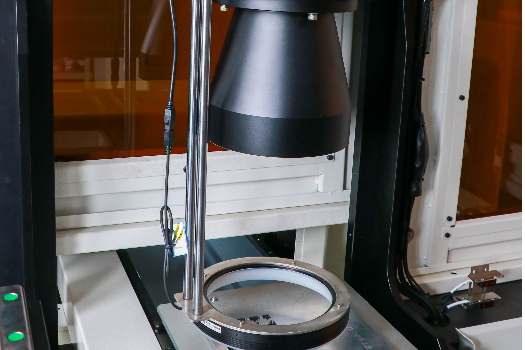

Product size detection structure

CCD detects product size, automatically determines OK products and NG products, and has the function of scanning code

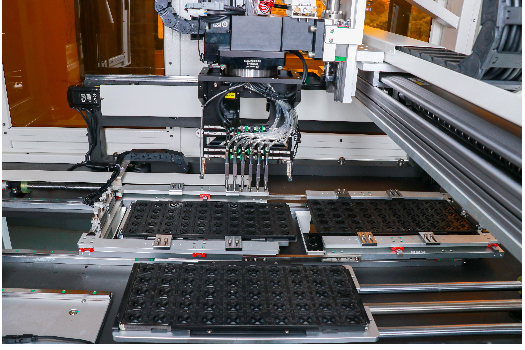

Automatic swing structure

CCD guide nozzle automatically absorb OK product to swing plate, automatically distinguish NG code, automatically put NG product into NG disk, NG code, fork plate into bad disk

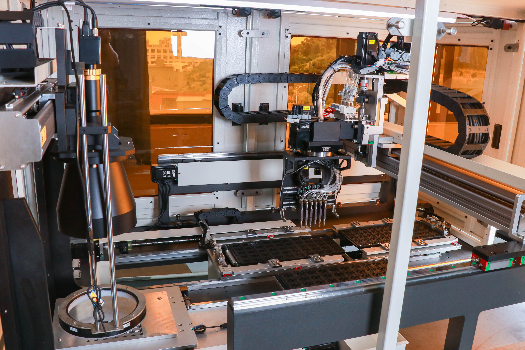

Gantry transport structure

The gantry handling structure implements multi-axis control, which realizes multi-point movement by X axis, Y axis and Z axis, plus rotation axis, which can flexibly control rotation Angle

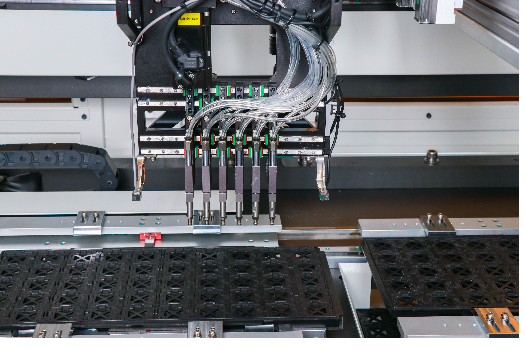

Suction nozzle automatic adjustment structure

The nozzle can flexibly and automatically adjust the spacing (10mm-35mm), and can be absorbed in alternate lines when it is larger than 35mm, and the camera guides the precise placement

On line type disk shifter EXE530 Product Features:

- The X axis travel is 1100MM, the Y axis travel is 600MM.

- The range of work travel is marked in the red circle

- Automatic feeding: the product to be placed will be automatically fed into the plate by the signal of the front online distributor.

- Automatic code scanning: CCD detects product size and has the function of code scanning.

- Automatic plate setting: CCD guided nozzle automatically absorbs OK product plate setting.

- Automatically distinguish NG code: NG product is automatically put into NG disk, NG code, fork plate into bad box.

- Automatic Tray stacking: Automatically supply empty Tray trays and stack OK finished tray trays.

- AGV automatically feeds the empty Tray Tray and collects the full tray tray.

- Multi-axis bus control.

- Gantry Structure/Manipulator structure (optional)

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.
