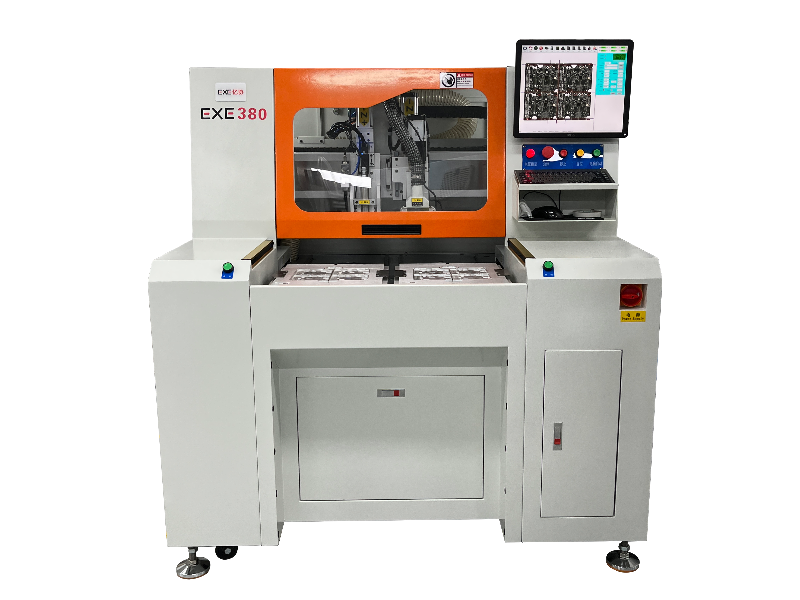

Sawing and milling integrated board splitting machine EXE-380
Specification parameter

Plate size: 50*50-350*380mm

Plate thickness: 0.4-3.6mm

Plate speed: 0--200mm/S

Product accuracy: ±0.5

Power supply: 220V 4KW

Precision control: CCD camera positioning, Mark calibration

Suction mode: Upper/lower suction

Cutting motor power: 500W

Cutting motor speed: 13000 RPM

Number of platforms: 2

Rotation or not: Head rotation segmentation

Parting mode: serrated knife + milling cutter

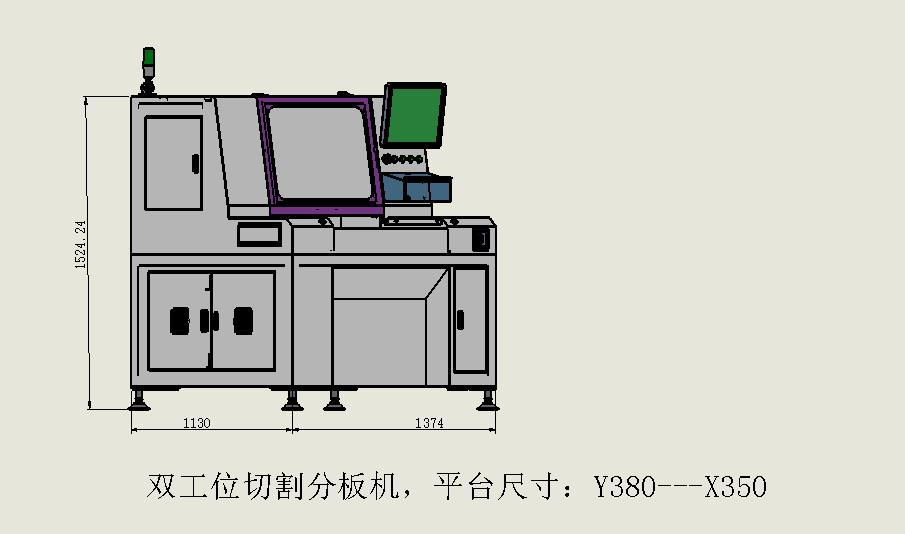

Equipment size: L1065*W1065*H1520

Product details page Product characteristics Quality assurance and after-sales service
Customer site

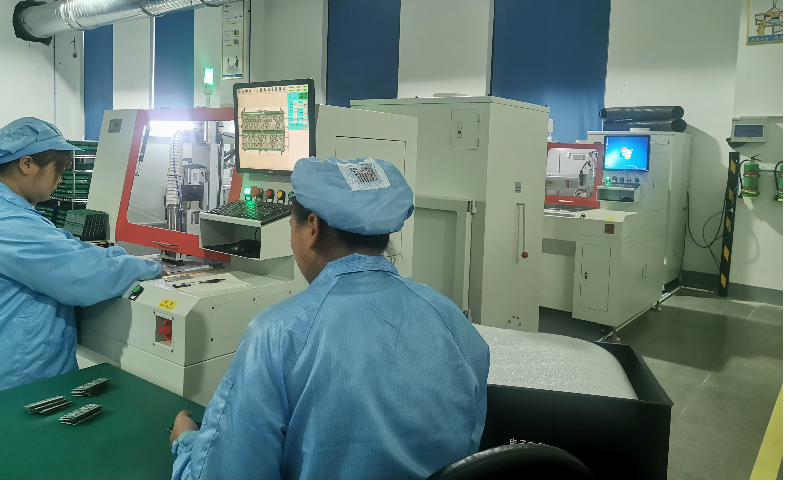

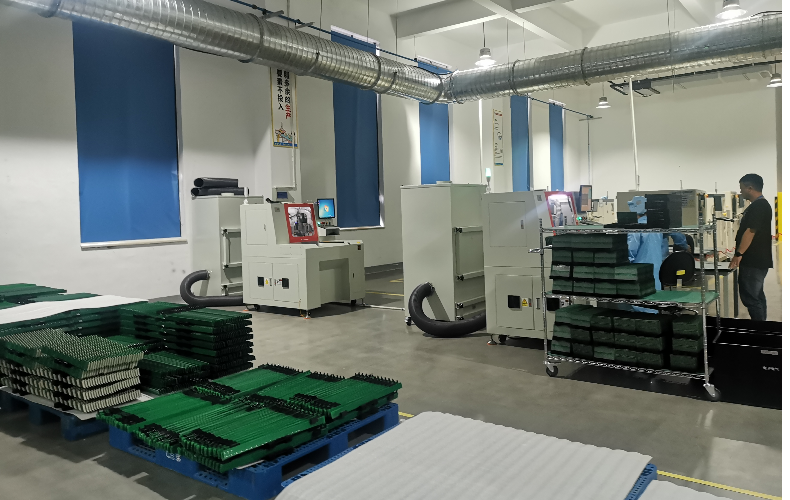

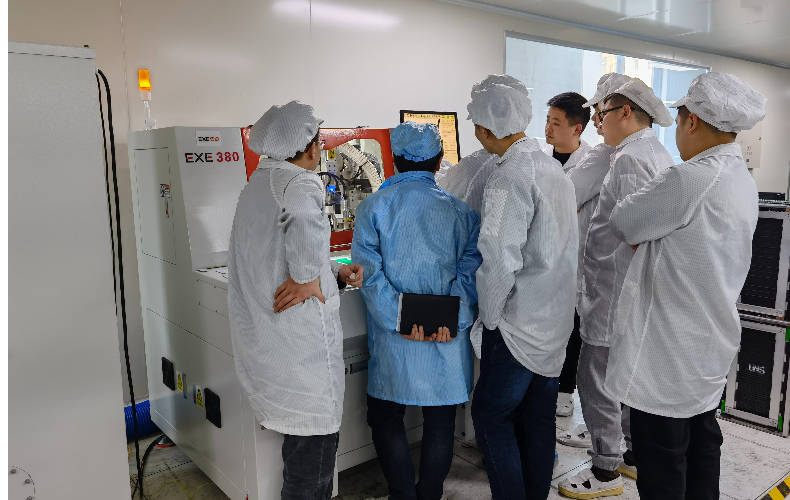

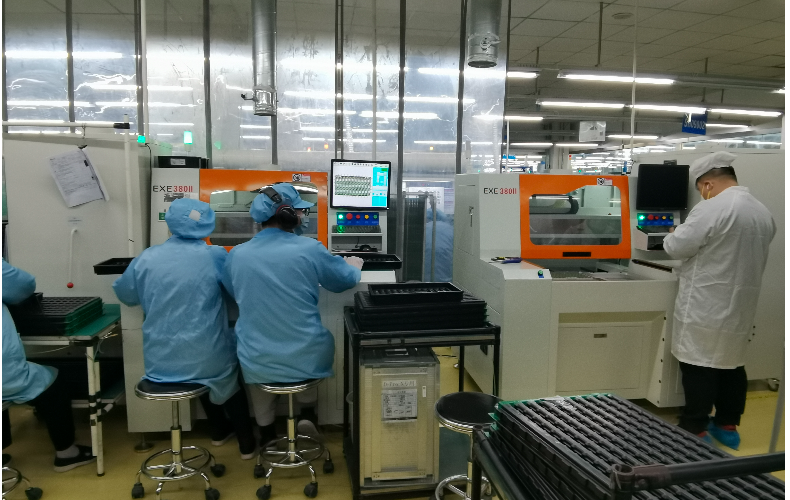

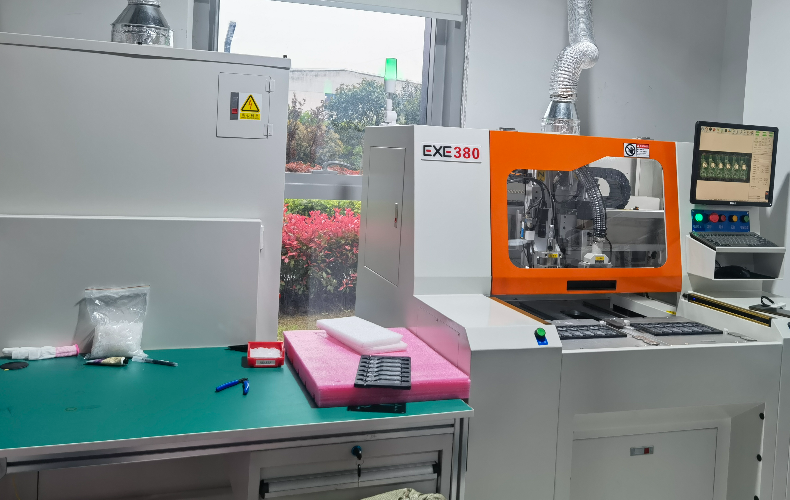

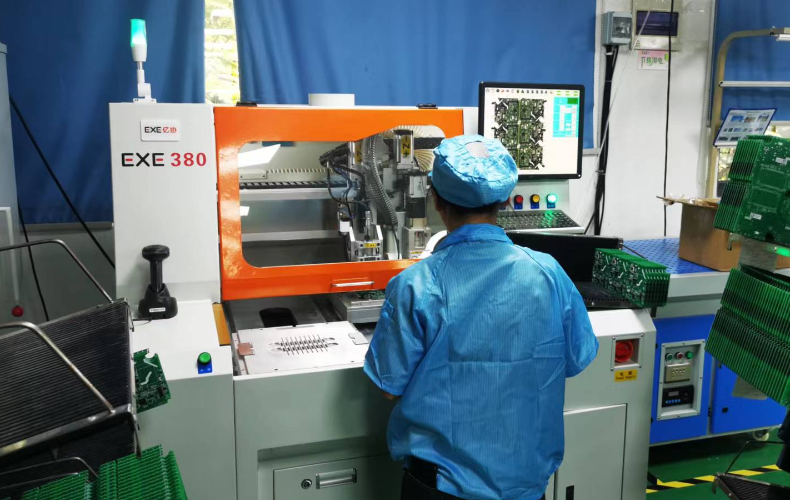

        Serrated blade splitter customer site
Serrated blade splitter customer site
        Serrated blade splitter customer site
Serrated blade splitter customer site
        Serrated blade splitter customer site
Serrated blade splitter customer site
        Serrated blade splitter customer site
Serrated blade splitter customer site
        Serrated blade splitter customer site
Serrated blade splitter customer site
        Serrated blade splitter customer site
Serrated blade splitter customer site
Function introduction

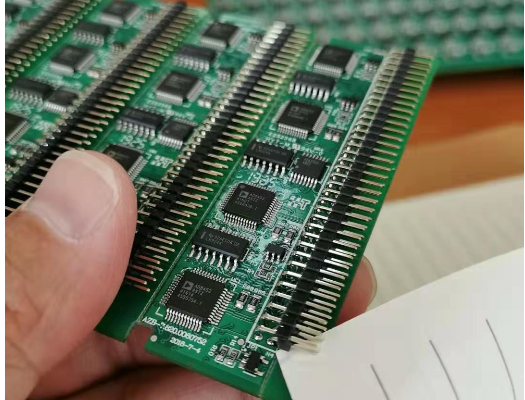

  • The rear of the V slot is covered with wire stitches
    The rear of the V slot is covered with wire stitches

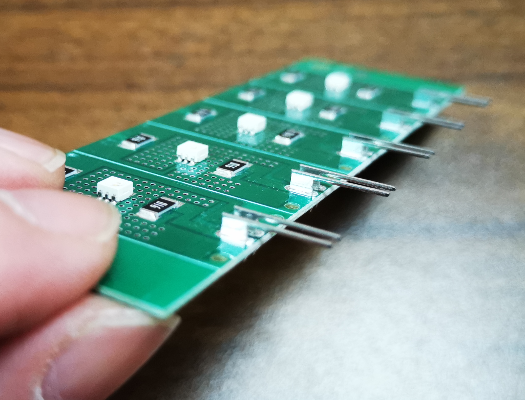

  • Lamp foot pit lamp products
    Lamp foot pit lamp products

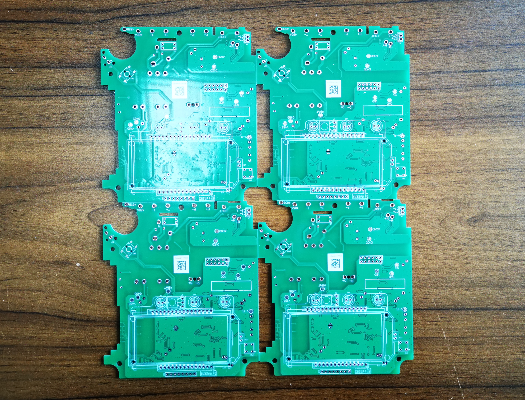

  • Multi-panel electric meter products
    Multi-panel electric meter products

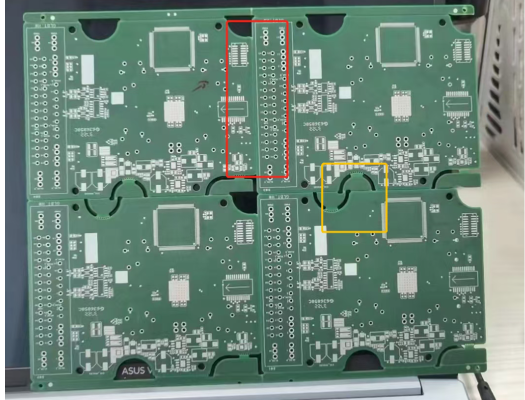

  • 4 Mosaic V slot, stamp hole products
    4 Mosaic V slot, stamp hole products

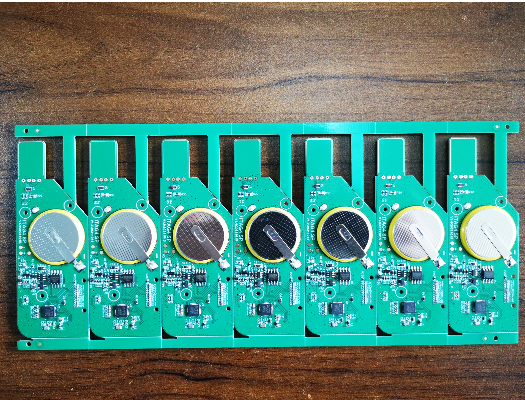

  • Multi-panel V slot, stamp hole products
    Multi-panel V slot, stamp hole products

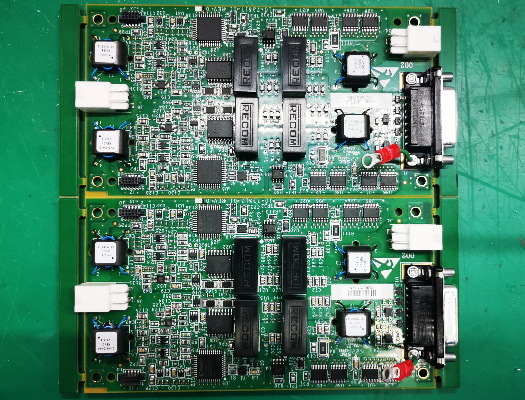

  • Medical products stamp hole and V-slot process
    Medical products stamp hole and V-slot process
Configuration introduction

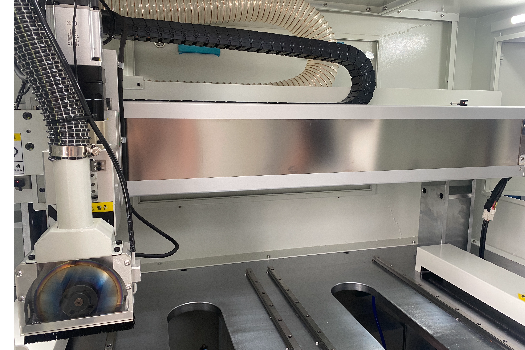

Horizontal gantry module
The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity
Horizontal gantry module

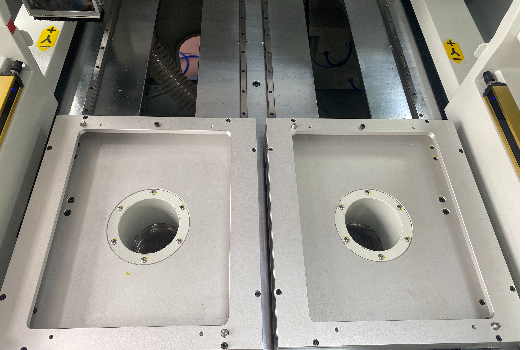

Double countertop
Double station double suction port, effective adsorption products to prevent shaking, dust treatment effect is excellent
Double countertop

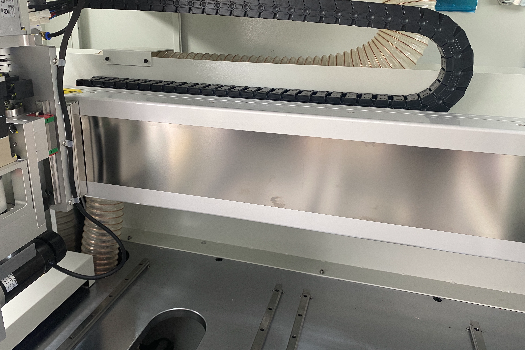

Dust-free module
The sealed dust-free module is used to effectively prevent dust from adhering to the screw, and the maintenance is more convenient
Dust-free module

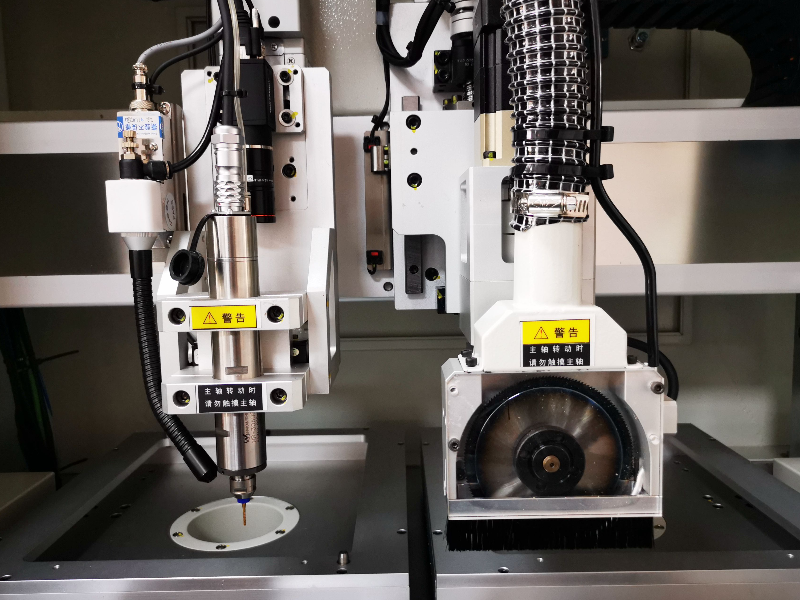

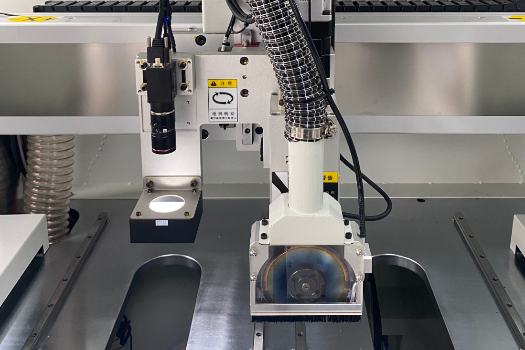

High power high speed spindle
Using high-power high-speed spindle, cutting stability, smooth incision, can achieve 90 degrees rotary cutting
High power high speed spindle
Sawing and milling integrated board splitting machine EXE-380 Product Features:

1. The cutting section of the product is smooth and smooth, without breaking edge burrs. High precision of the parting plate.

2. Computer intelligent control. The stress of the splitter is small, and the actual test stress of the splitter is less than half of the stress of the milling cutter splitter.

3. Fast splitter efficiency, the actual splitter speed is more than 100mm per second.

4. Equipment accuracy: ±0.01mm. Plate accuracy: ±0.05mm


Quality assurance after sale without worry
  • 24 hours on call
    There are Saturdays and Sundays and holidays
  • Pearl River Delta, Yangtze River Delta
    Half an hour to respond, two hours to the scene
Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.
