Dual spindle off-line splitter EXE-910

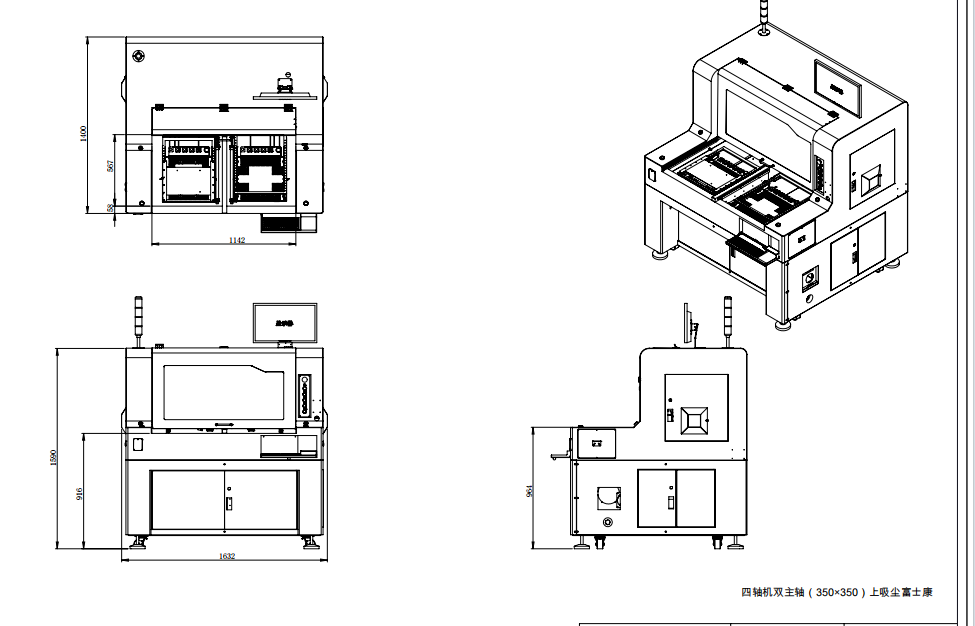

Specification parameter

1. Sub-plate working range: 300mmx350mm

2.xyz drive mode: ac servo motor

3. Number of motion axes: 7 axes

4. Program teaching method: color ccd image intuitive teaching input

5. Operation interface: win10 window operation interface

6. Upper dust suction power: 5hp, lower dust collector power: 3hp (option 5hp)

7. Optional Japanese NSK: max60000rpm spindle, sycotec (Germany) : max80000rpm (automatic tool change)

8.x-y ac servo speed: 0-1000mm/sec

9.z ac servo speed: 0-800mm/sec

10.x-y repetition accuracy: ±0.02mm

11. Cutting accuracy: ±0.05mm

12.ccd camera calibration accuracy: ±0.01mm

13. Sub-plate stress value: below 300uε

14. Tool diameter: 0.8-3.0mm

15.pcb board cutting thickness: 0.2mm-6.0mm

16. Main machine and dust collector pressure: 220v 1φ and 3φ

17. Power consumption: 3.5kva

18. Static gun

19. Vision system: high-resolution digital camera

20. Drive motor: AC brushless servo motor

21. Program backup: usb interface

22. Control mode: special controller

23. Dust collector size: 640mm×785mm×1760mm(d×w×h)

24. Machine size: 1640mm×1370mm×1408mm(d×w×h)

25. Host + dust collector weight: 800 kg

Product details page Product characteristics Quality assurance and after-sales service

Customer site

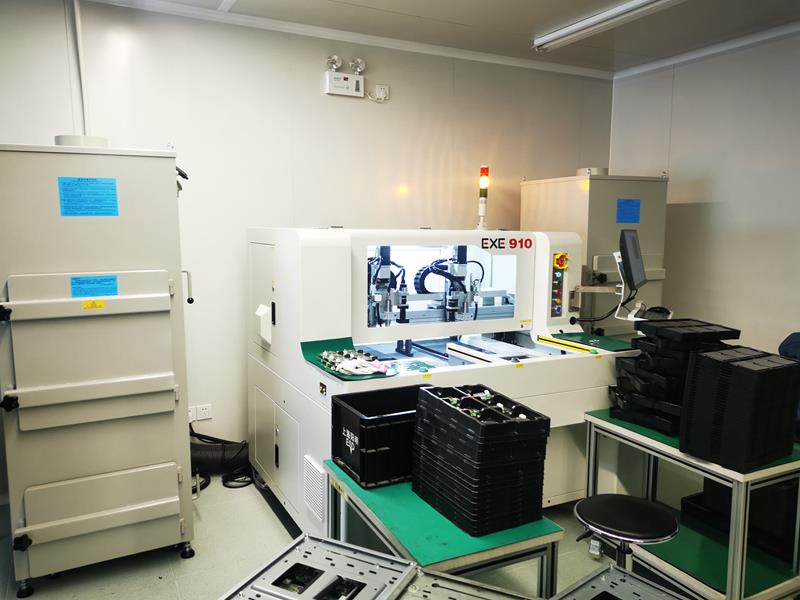

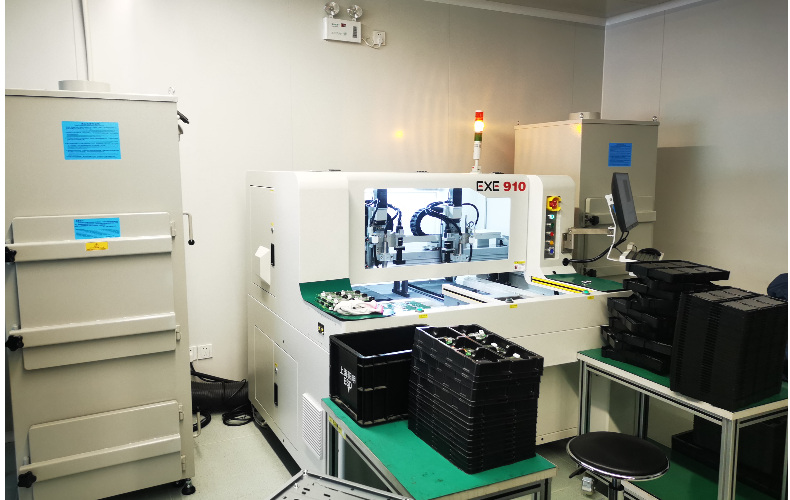

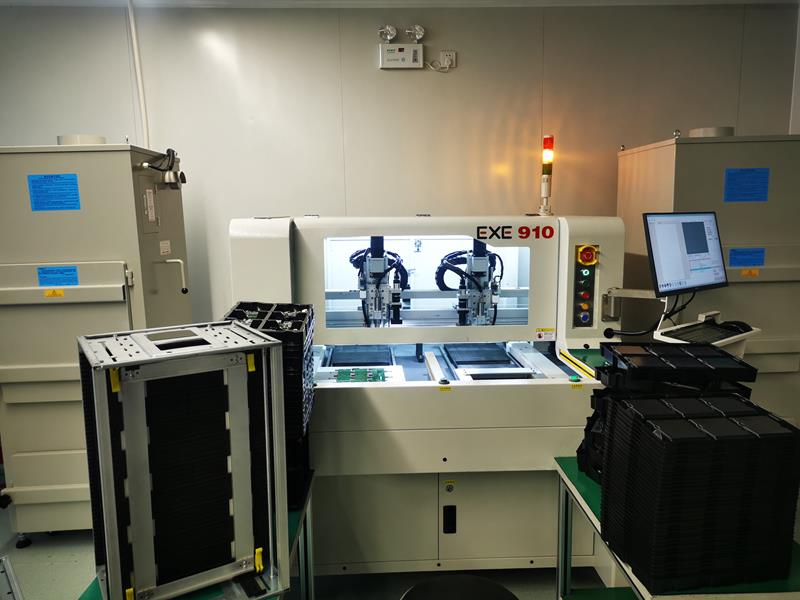

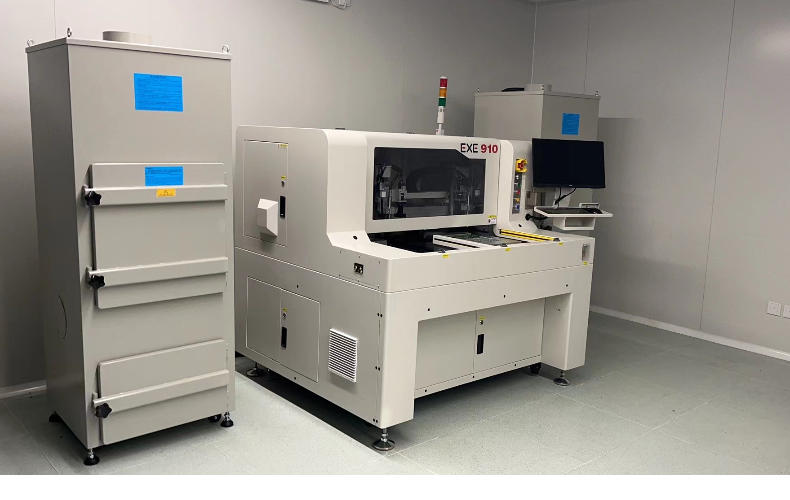

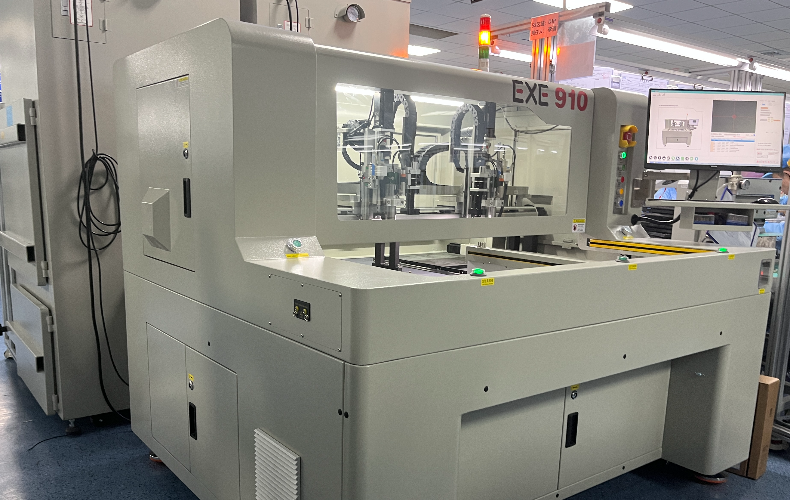

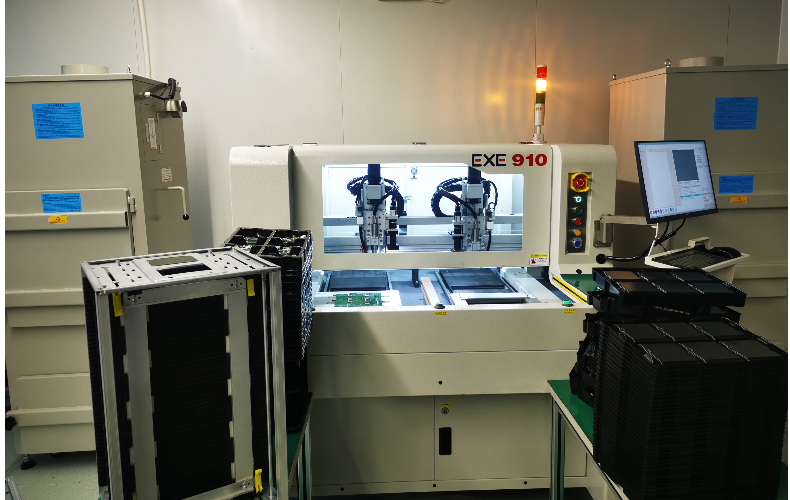

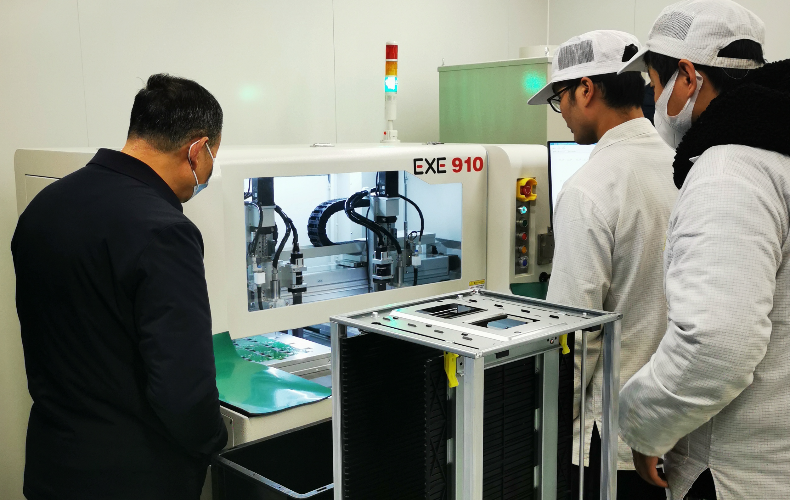

Offline double spindle customer site

Function introduction

Upper suction structure

The upper dust suction structure (optional) adopts electrostatic brush to seal the cutting point, and independently vacuums the single cutting point, greatly improving the dust suction effect.
The cutter automatically adjusts the number of segments

The software sets up the milling cutter segment function, the milling cutter after using a section of automatic cutting compensation, prolong the service life of the milling cutter, reduce the cost.

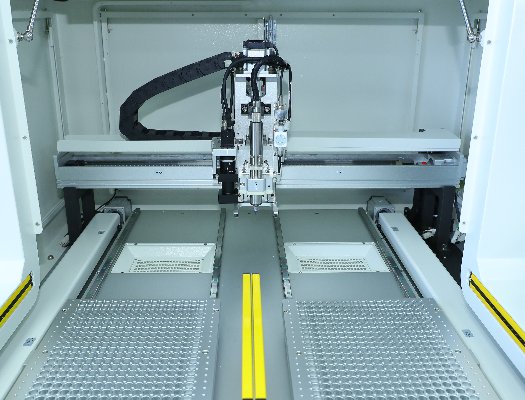

Safety grating facility

Safety grating facilities are installed in PCB taking and placing area of double Y-axis table to avoid manual misoperation and meet public safety requirements.

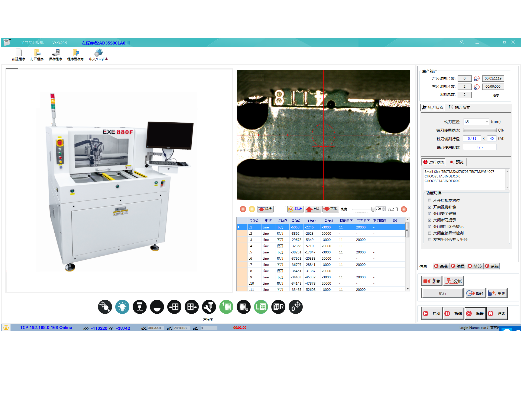

Software operating interface

Windows operation interface friendly Chinese and English switch,
Graphical window operation interface, editing program is simple, can quickly complete the multi-point program.

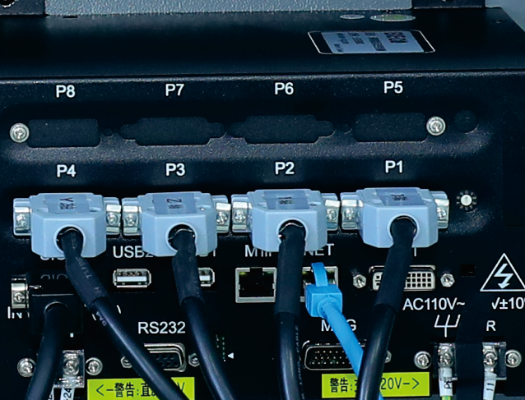

CNC control system

Using independent CNC special motion controller, the control part is integrated, the loop control stability is strong, the precision is high, the response transmission is fast, and the anti-interference is strong

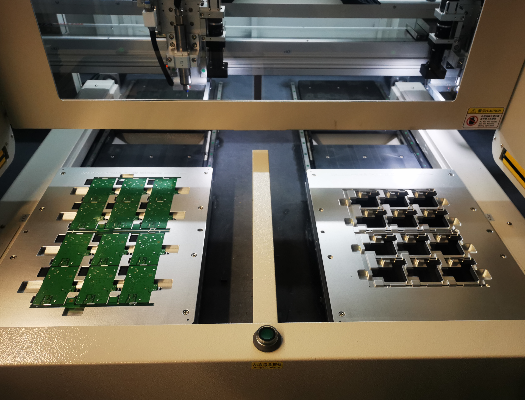

Using independent CNC special motion controller, the control part is integrated, the loop control

The standard double-station work surface can be divided into different products at the same time to meet the urgent needs of multiple jobs

Configuration introduction

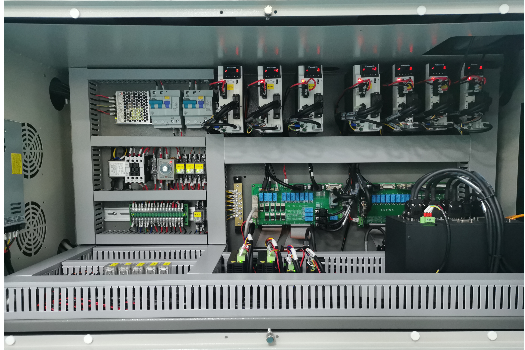

Electronic control layout

Electronic control line reasonable wiring, maintenance, easy and convenient.

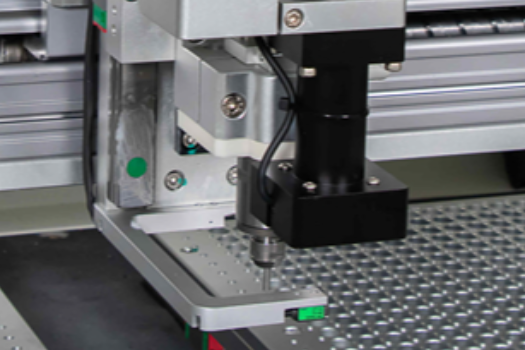

Milling cutter fracture detection system

Automatically detect whether the milling cutter is broken, real-time monitoring of milling cutter service life, milling cutter fracture, milling cutter life is used up, the splitter will actively make an alarm

$Milling cutter fracture detection system$

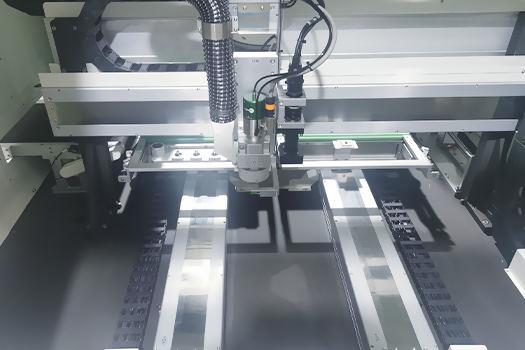

Marble platform

The main structure adopts marble platform, motion module and plate cutting, high stability.

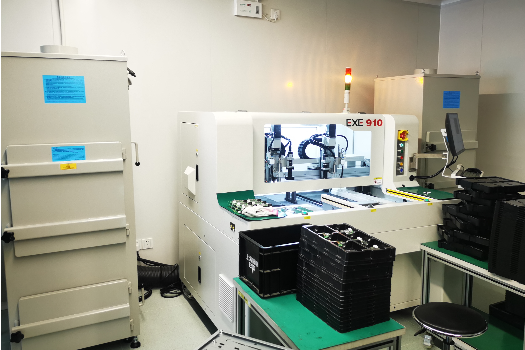

Double countertop

Double 5HP vacuum mechanism, independent corresponding to their respective segmentation platform, vacuum effect is excellent!

Electronic control layout

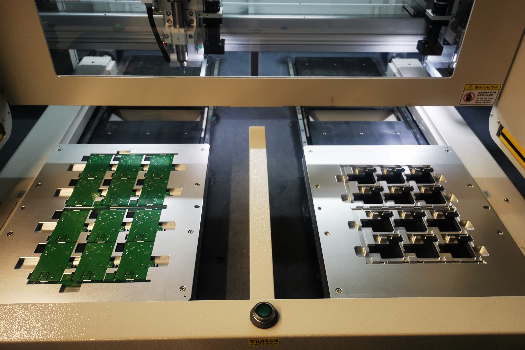

Double work table, can be independently operated to separate different products, greatly improve the efficiency of multi-work panel

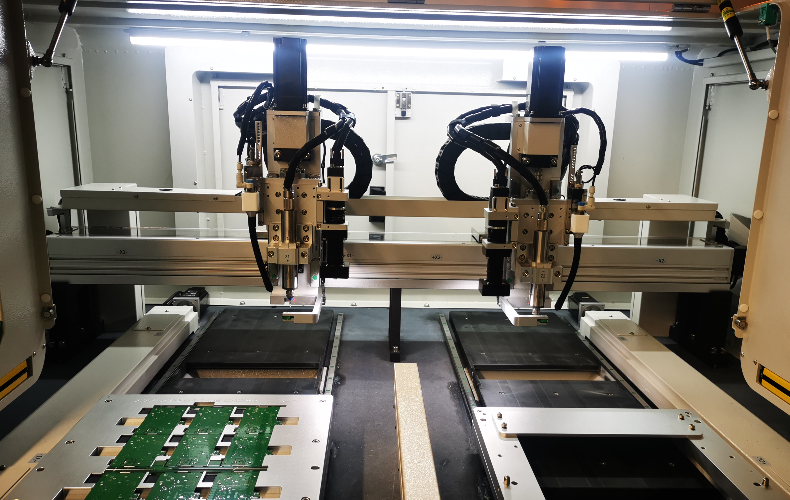

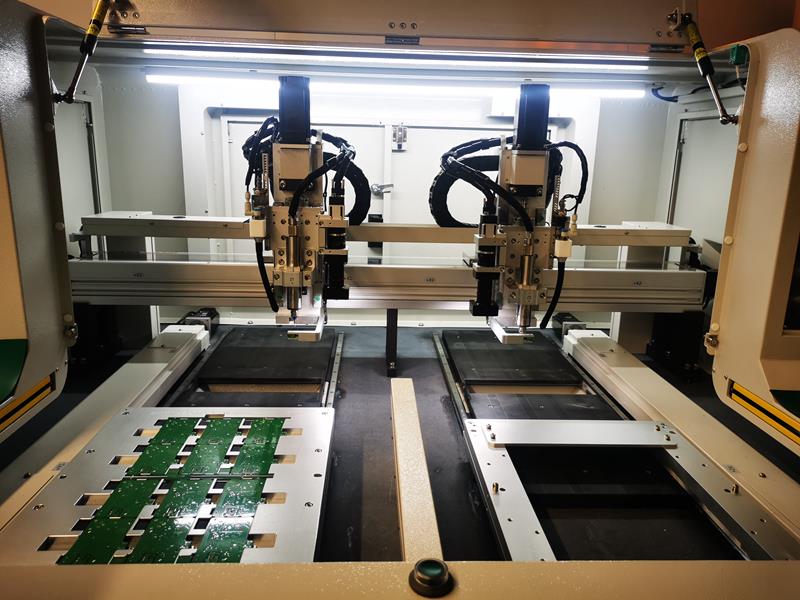

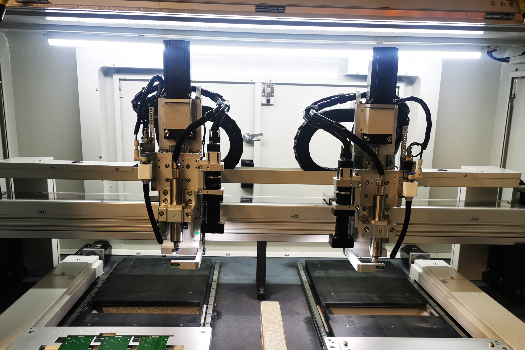

Dual Japanese NSK spindle

Using Japan NSK spindle, cutting stress is small, high precision, strong stability.

Dual spindle off-line splitter EXE-910 Product Features:

- Double spindle - double station platform structure design, improve cutting efficiency.

- The dual station platform can cut the subboard at the same time with independent spindles, greatly improving the production capacity and efficiency of cutting the subboard

- X axis, Y axis adopts high precision dust-proof module to ensure strong cutting stability and high precision.

- The whole system is equipped with CCD visual alignment system to improve cutting accuracy and efficiency and prevent dull operation.

- Using independent CNC special motion controller, the control part is integrated into one, the loop control stability is strong, the precision is high, the response is fast, and the anti-interference is strong.

- The equipment operation adopts English and Chinese interface conversion, and the software design is more user-friendly and easy for engineers to operate.

- With straight line, arc and irregular edge cutting function, to achieve broken tool detection, slip tool detection function.

- Adopt imported high-speed spindle cutting stress is small, high precision, increase cutting efficiency, automatic tool change to achieve full automation.

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.
