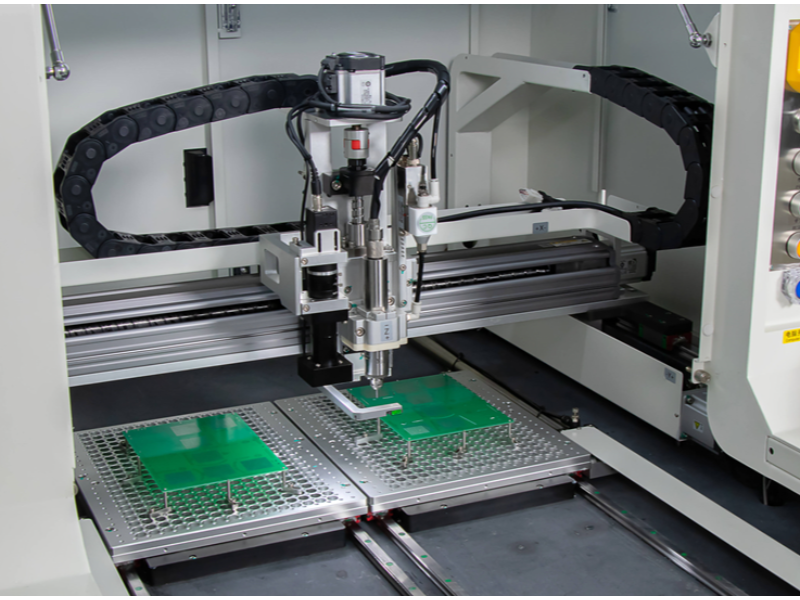

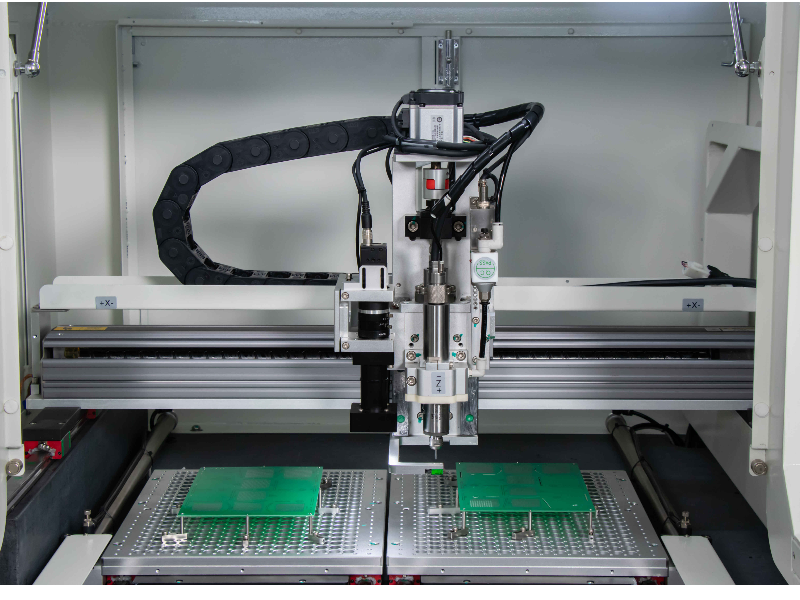

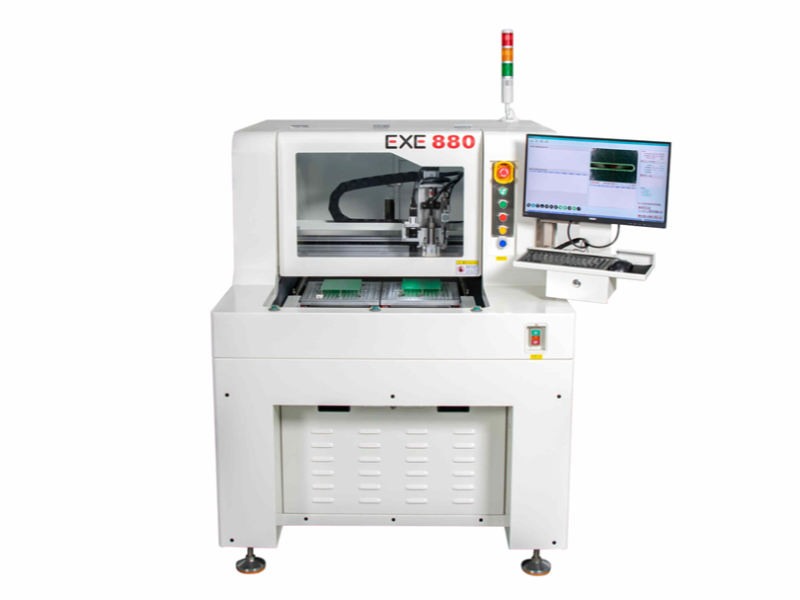

1. Automatic PCB splitter EXE-880L uses double slide rail and cylinder double platform operation. It can cut different types of products at the same time, greatly reducing the waiting time for taking and placing plates.

At the same time, the dual platform can be changed to a large single platform, increasing the working size and greatly improving the flexibility of the equipment.

2, automatic PCB splitter adopts high-speed NSK spindle to cut the splitter, greatly reducing the cutting stress, high precision, small inertia, fast response.

3. The PCB taking and placing area of the double Y-axis workbench is equipped with raster safety facilities to avoid manual misoperation and meet the requirements of public safety.

4, the window operation interface is friendly to switch between Chinese and English, the graphical window operation interface, the editing program is simple, can quickly complete the multi-point program.

5, multi-layer management rights of software users, prevent misoperation and other behaviors.

6. The vacuum under the automatic PCB separator adopts a sealed design, and the suction inlet adopts a 45 degree Angle to reduce the swirl phenomenon of dust in the interior.

7. The upper vacuum structure (optional) adopts electrostatic brush to seal the cutting point, and independently vacuums for a single cutting point, greatly improving the vacuuming effect.

8. The milling cutter detection system uses photoelectric sensors to monitor the status of the milling cutter in real time, effectively preventing the phenomenon of continuing to run after the cutter is broken.

9, the software set milling cutter segmentation function, automatic cutting compensation, prolong the service life of the milling cutter, reduce costs.
